HOMOGENIZERS

HOMOGENIZERS

It allows to make the best dispersions, emulsions, homogenizations, etc.

M.X.O.N. is the latest development from SEVEN .

The M.X.O.N. offers high performance homogenization.

The M.X.O.N. is designed to be attached by the bottom of the containers and can work in continuous or in recycling. Also designed to work IN-LINE.

The intense turbulent agitation that develops inside its micronizing chambers allows the best dispersions, emulsions, homogenizations, etc. to be carried out in all fields of the industry. It is generally used with a low speed agitator or a FULLVISC type agitator for high viscosity products. This operation is ideal for high viscosity cosmetic, pharmaceutical and food products.

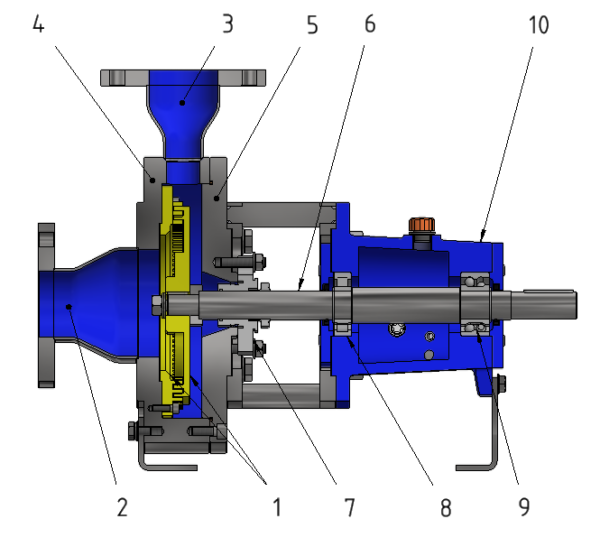

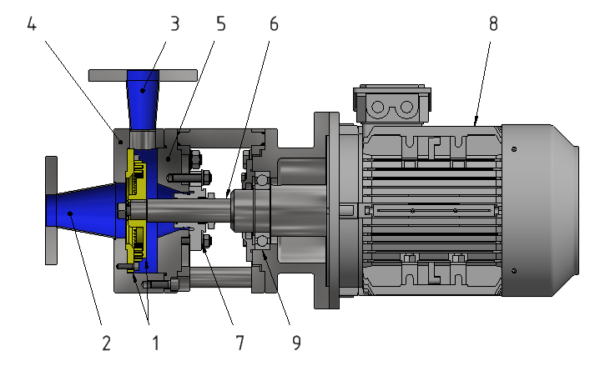

SECTION DIAGRAMS

M.X.O.N. in-line homogenizer

MODEL FLOW RATE (máx.)        (l/h) MOTOR
POWER (kW)
PERIPHERAL
SPEED (m/s)
DIMENSIONS PARTS LIST
M.X.O.N.-M 120 2000 4 5,5 7,5 18
M.X.O.N.-M 145 5000 5,5 7,5 22
M.X.O.N.-H 195 14000 7,5 11 15 29
M.X.O.N.-H 245 32000 22 30 37 37

M.X.O.N. bottom vertical homogenizer

MODEL FLOW RATE (máx.)        (l/h) MOTOR
POWER (kW)
PERIPHERAL
SPEED (m/s)
DIMENSIONS PARTS LIST
M.X.O.N. 120 2000 4 5,5 7,5 18
M.X.O.N. 145 5000 5,5 7,5 22
M.X.O.N. 195 14000 7,5 11 15 29
M.X.O.N. 245 32000 22 30 37 37

DOCUMENTATION

  • Catalogue
  • Instruction book
